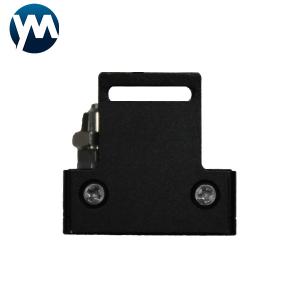

UV LED Curing Systems 80W curing chiller uv light uv led curing system
UV LED Curing Systems Product Description
The item may be administered along with either Water-cooling or
even wind-cooling strategy.
Various other treating dimension and also current may be created
according your requirment, inluding mix
wavelenth unique wavelenth as well as treating dimension.
Greater functionality and also lowered consumption.
Apply in a number of printing industries, coating, in addition to
sticky.
1) Good Price
We provide the producer's straight asking price.
2) Quality Control
Our experts possess our personal R&D crew, Every item possesses
a qualified examination just before cargo.
3) Custom-made Solution
Our team may individualize items as your necessity.
4) After-sale Answer
Our company deliver well-timed as well as premium pre-sales tips as
well as after-sales company,
Any kind of inquiries concerning UV LED will certainly be actually
addressed through a specialist designer in 12 hrs.
| Item | UV LED Curing Systems 80W |
| Power | 80w |
| Color | UV |
| Diode Brand | DC, LG |
| Diode type | COB smd type |
| Size | 44mm*27mm |
| Luminous Size | 37mm*8mm |
| Chip Material | Epileds |
| Wavelength | 365nm,385nm,395nm,405nm |
| Cooling scheme | Water cooling |
| Application | Apply in various printing industries, painting, and glue. |
| Lifespan (hours) | 20000-30000 |
| Warranty | 1 years |
| Place of Origin | Guangdong, China |
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
4) When welding, distinguish positive and negative polarity, and
avoid lens to avoid damage to lens..
5) Do a good job of heat dissipation measures, especially
high-power UVLED as far as possible to ensure adequate radiator
area
6) In order to prolong the lifetime of ultraviolet light emitting
diodes, it is recommended to use a stable constant current driving
power supply or IC instead of a constant voltage driving power
supply or IC.
Thank you for your attention
